Rotates the payload 360° in place, so trolleys and pallets arrive at the next station already aligned.

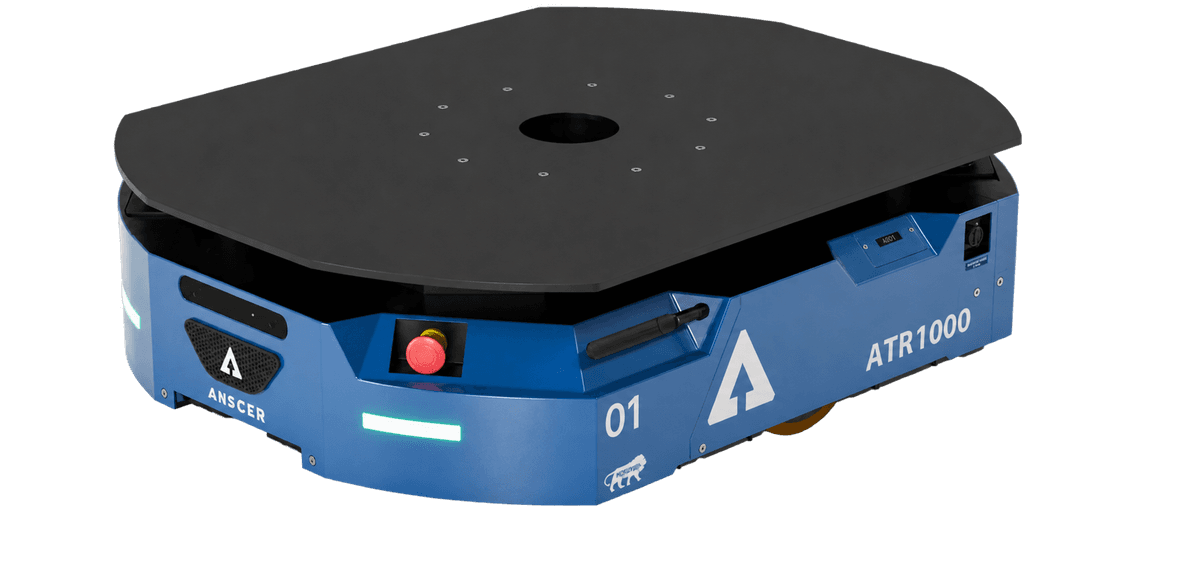

ATR 1000
Advantages
Why Choose ATR 1000
Choose the ATR 1000 when load orientation matters as much as load movement. One platform that lifts, turns and delivers without adding a manual handling step at either end of the route.
Moves up to 1000 kg on a low-profile chassis that turns within its own footprint.
SLAM navigation maps the floor you already have. No tape, magnets or facility modification required.
360° Powered Turntable
Turns the load independently of the chassis for aligned handoffs in tight aisles.
60 mm Automated Lift
Engages and releases trolleys, pallets and fixtures without operator assistance.
Ready To Automate Your Workflow?
Precision Docking
Accurate positioning for seamless pickup and drop-off.
Full-Perimeter Safety Fields
Two diagonally mounted scanners provide 360° coverage around the robot.
Applications
Built For Smart Material Movement
Designed to automate internal transport across warehouses, production floors, and distribution environments with safe and efficient autonomous navigation.

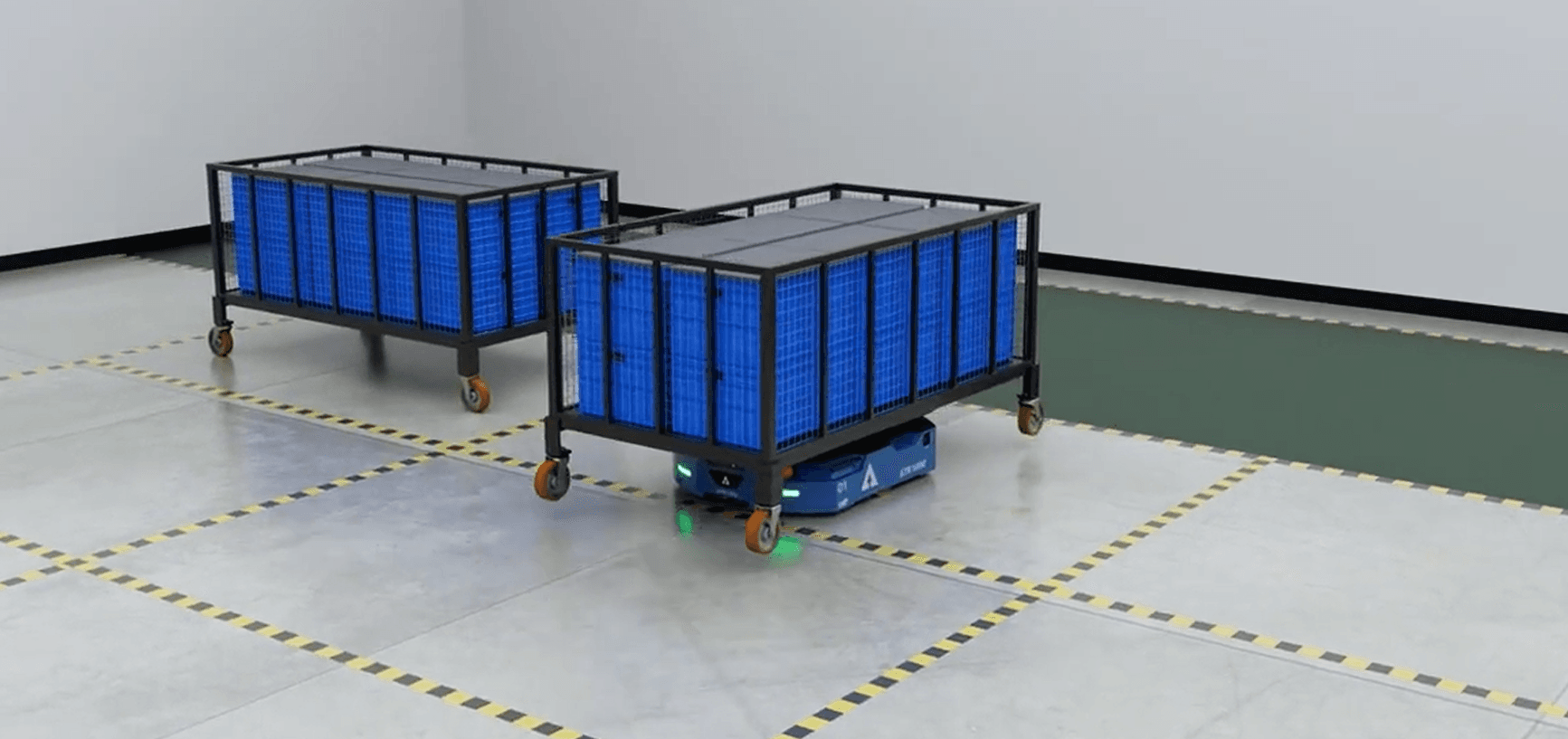

Lift, turn and transport trolleys between production cells.
Lift, turn and transport trolleys between production cells.
Move loaded pallets across warehouse and staging areas.
Deliver kits and components to the line in the correct orientation.
Rotate to square up with fixed conveyors for an automated handoff.
Human-safe Operations
PLd category 3 certified
Laser safety fields respond before a person gets close
No cages
No zone restrictions

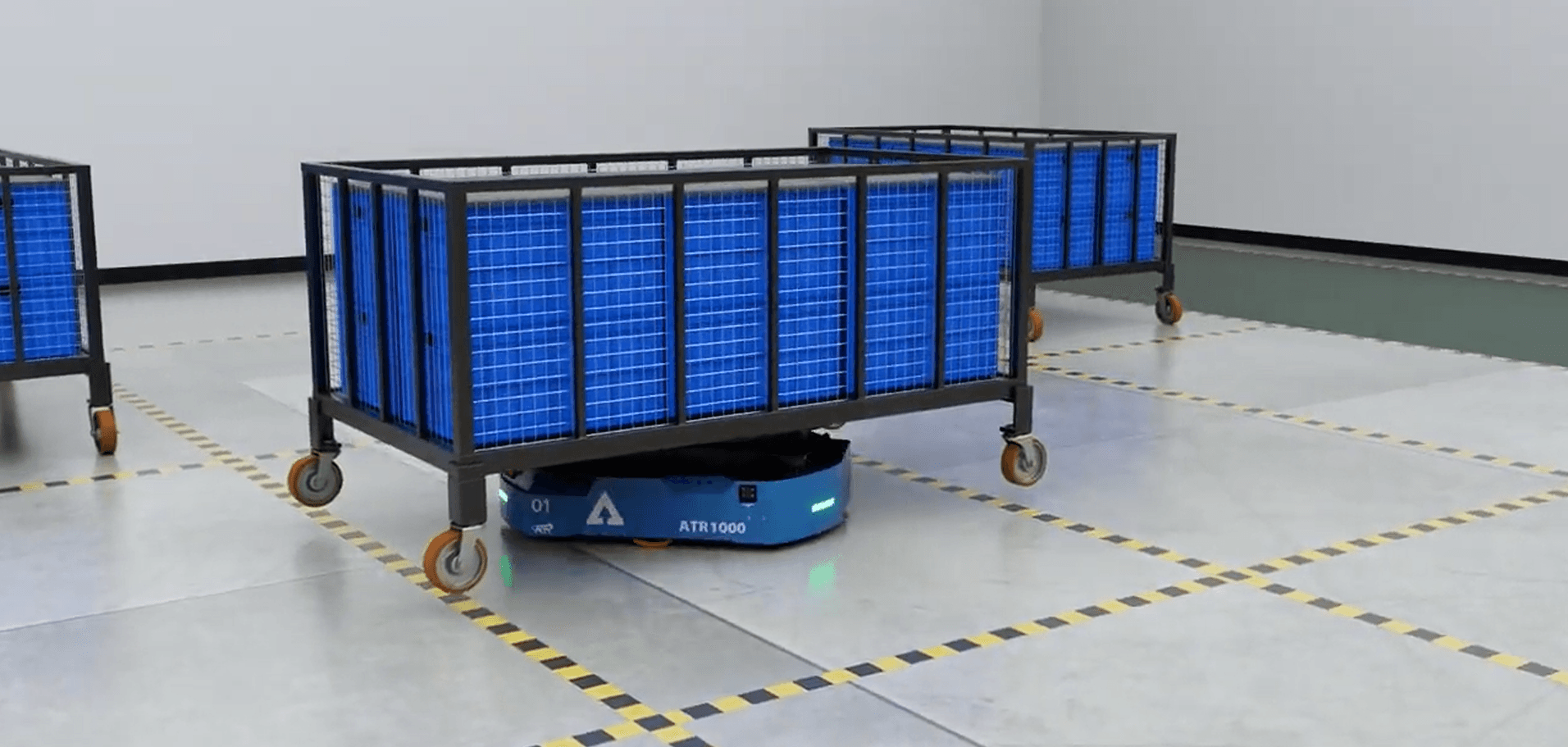

Turntable Load Handling
Lift, move and rotate loads
360° orientation control
Seamless station-to-station transfer
Autonomous Navigation
Detects obstacles in time, reroutes autonomously without interruption
No floor tape, no manual intervention, no downtime
Interoperable Architecture
VDA 5050 compliant
Enables vendor-agnostic scalability
Real-Time Alerts & Status Indication
Audio alerts for operator notification
No screen dependency
Multi-Side Status Lighting
Front and rear LED indicators
Workers know the robot's intent before it reaches them
Opportunity Charging
Autonomous opportunity charging during task intervals sustains continuous operation without scheduled downtime
Built-In Mission Creator
Configure tasks, update routes, and adapt to layout changes on the fly
No programmer required, just an intuitive interface your team can own
01-03/08
FAQs
We've heard it all - here's what people are really asking behind the scenes.
Its turntable rotates the payload a full 360° independently of the chassis. Loads can be re-oriented in place rather than repositioned by an operator or by maneuvering the whole robot into line, which matters most in tight aisles and at fixed conveyor handoffs.
Up to 1000 kg - trolleys, pallets, carts, fixtures and other unit loads, engaged by a 60 mm automated lift.
No. SLAM navigation maps the existing layout, so no floor tape, magnets or reflectors are required. Floors should be clean, dry and non-slippery.
Two diagonally mounted laser scanners give full 360° field coverage at PLd Category 3 (EN ISO 13849), supported by a 3D depth camera, LED status lighting at all four corners and audible alerts. The robot complies with ISO 3691-4, ISO 13849-1, ISO 12100, EN 1175 and ANSI RIA R15.08-1.
